Part 10 - Corrections and repairs
I
have found that the shaping of the chair arms and back to be a
complicated process, with a step forward, then sideways, and then
another step forwards. It is not plain sailing. There are many small
corrections to make as I proceed, and I dare not attempt to leave
these until a later date. I thought that some here will find the
corrections ... repairs ... interesting, and hopefully useful if you
find yourself in the same situation.

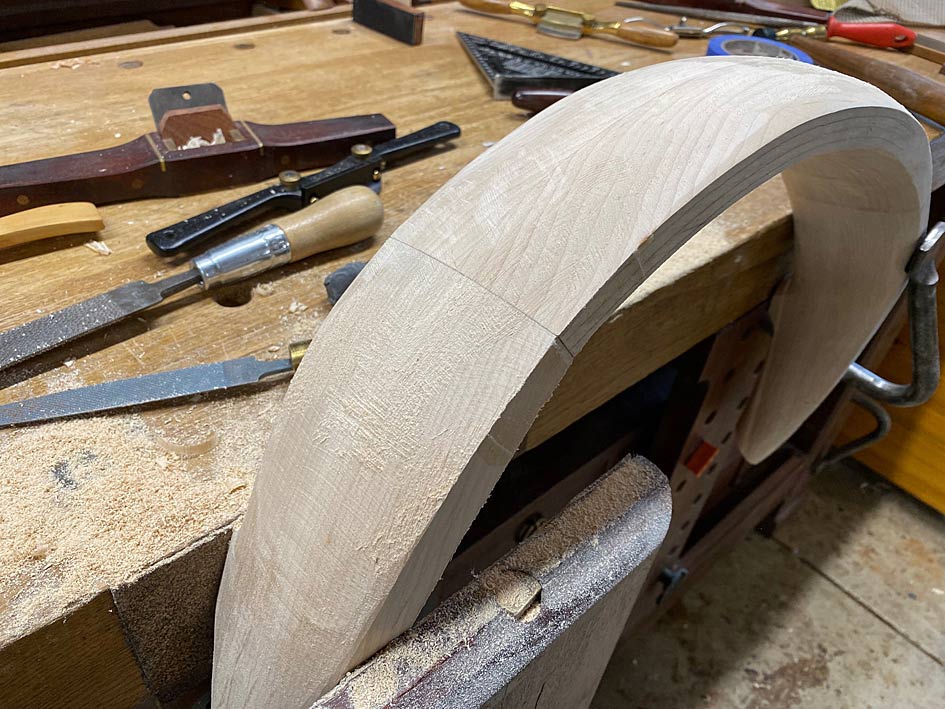

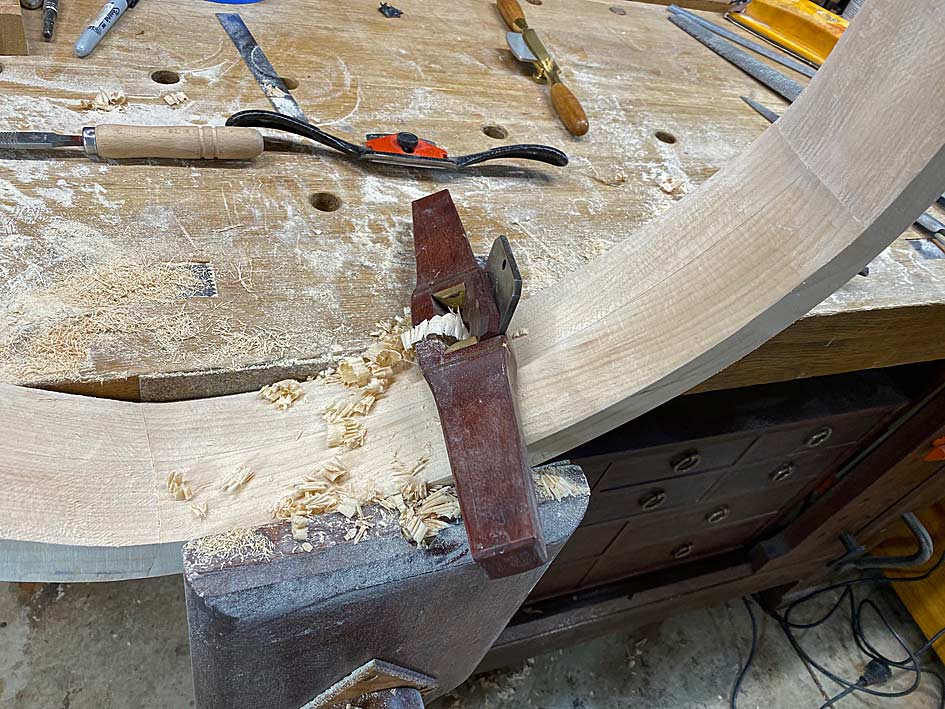

In the following photo,
where the inside back is being shaped, you can see two joins where
the arms and back connect ...

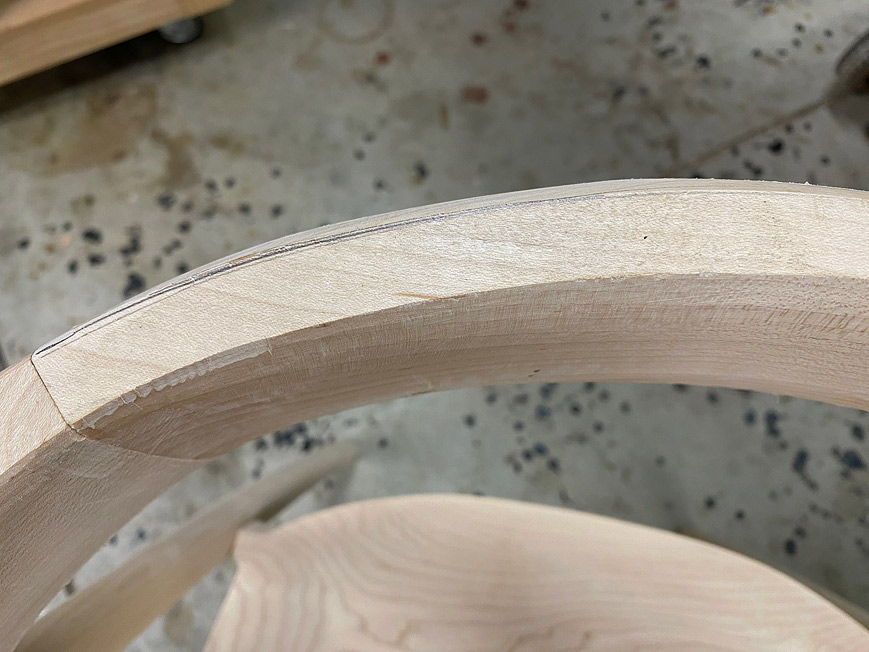

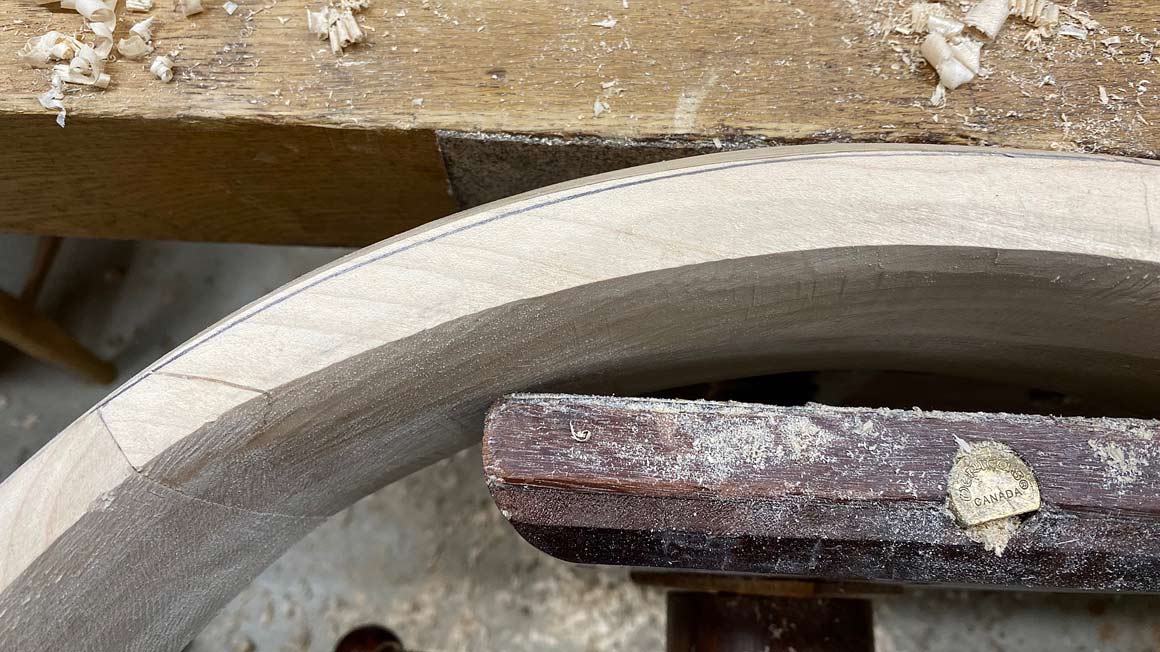

Outside
example ..
These
joins are clean and tight. In all there were 8 such joins, 2 chairs
with each 2 inside and 2 outside joins. Of these 8 joins, 7 were
perfect. One was a disaster!

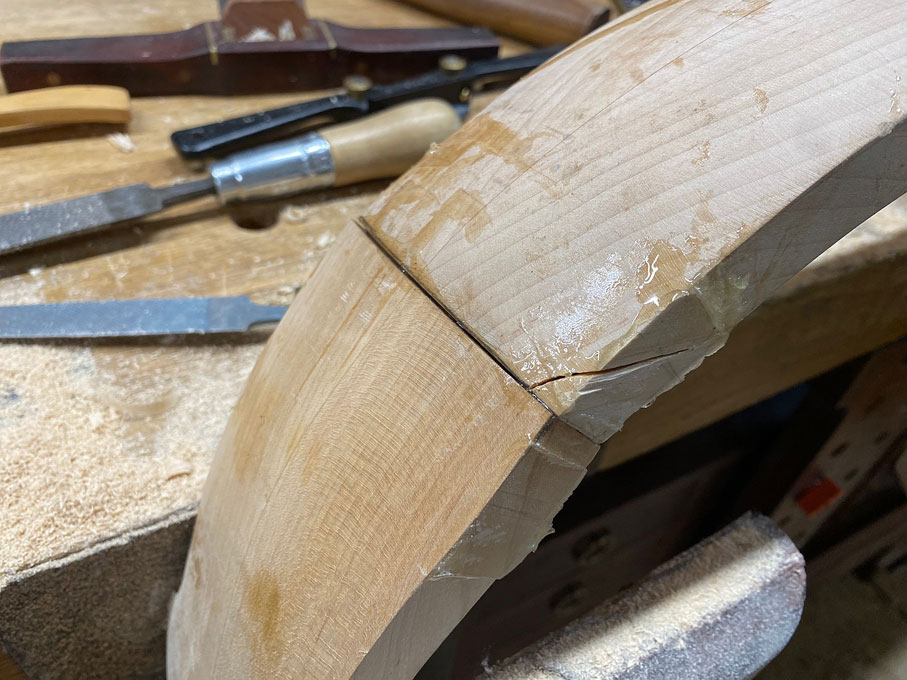

What happened was, in clamping
the two parts, there was movement and an outside section moved
slightly. This left a gap. To make it worse - as bad as it could get
- the corner of one piece was crushed by a clamp, and cracked! I
pushed it back into position, secured it, but it must have moved a
little. Try not to cry ...
Well,
you just have to repair it. And not with filler or a wedge.
I
decided to peen the wood and move it into the gap. I have used this
technique for dovetails,
which is edge grain, but never for end grain. In fact, I have not
seen anyone do this before.

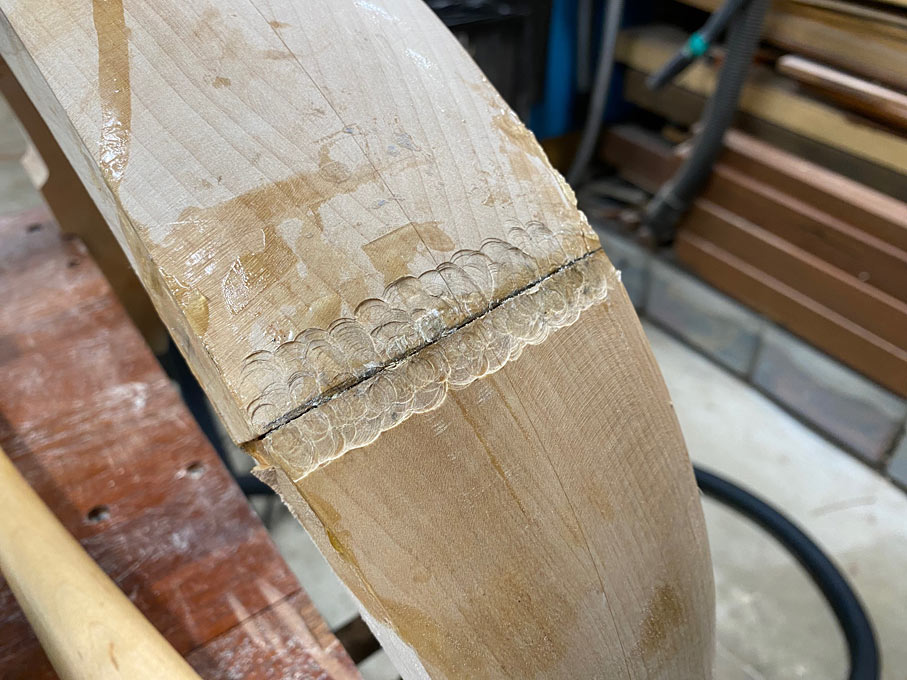

Using a couple of different size
drift punches, I began tapping the wood into the gap ...

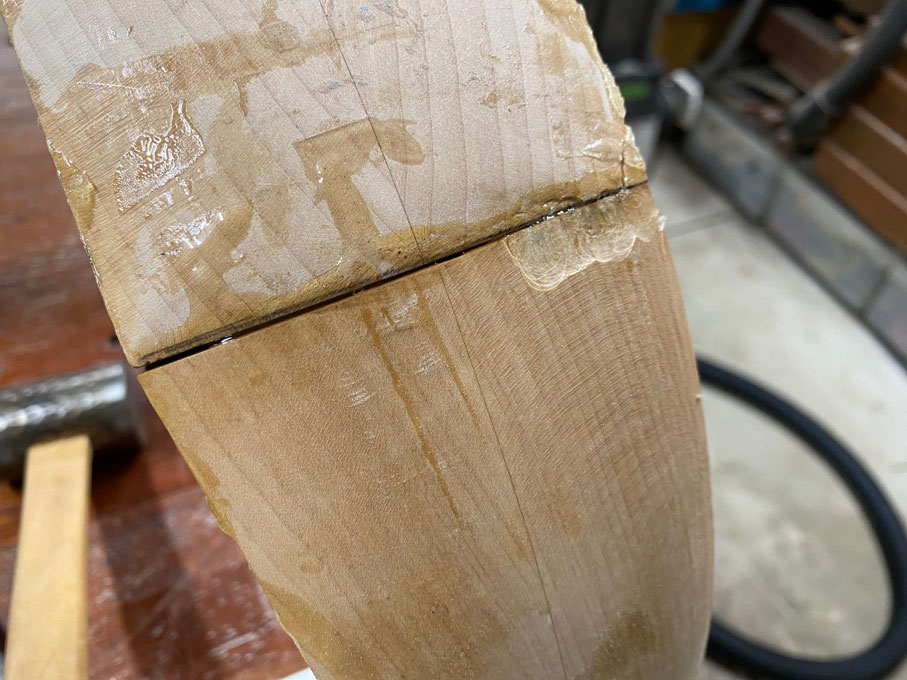

It
looks like hell, but it did the job ...
I'll
save the outcome for the end of the build. [wink]

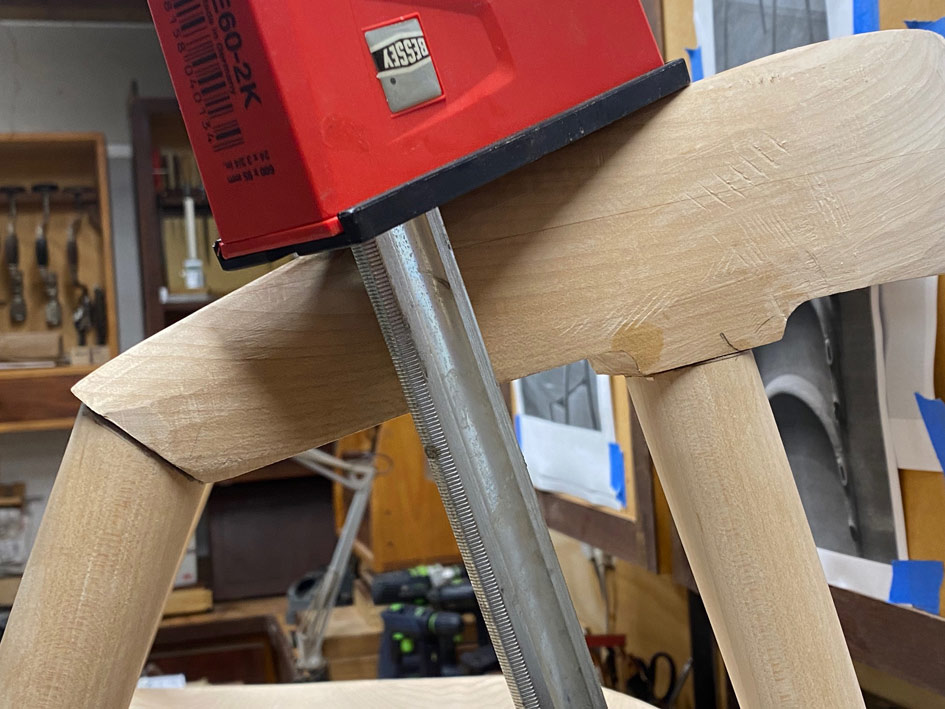

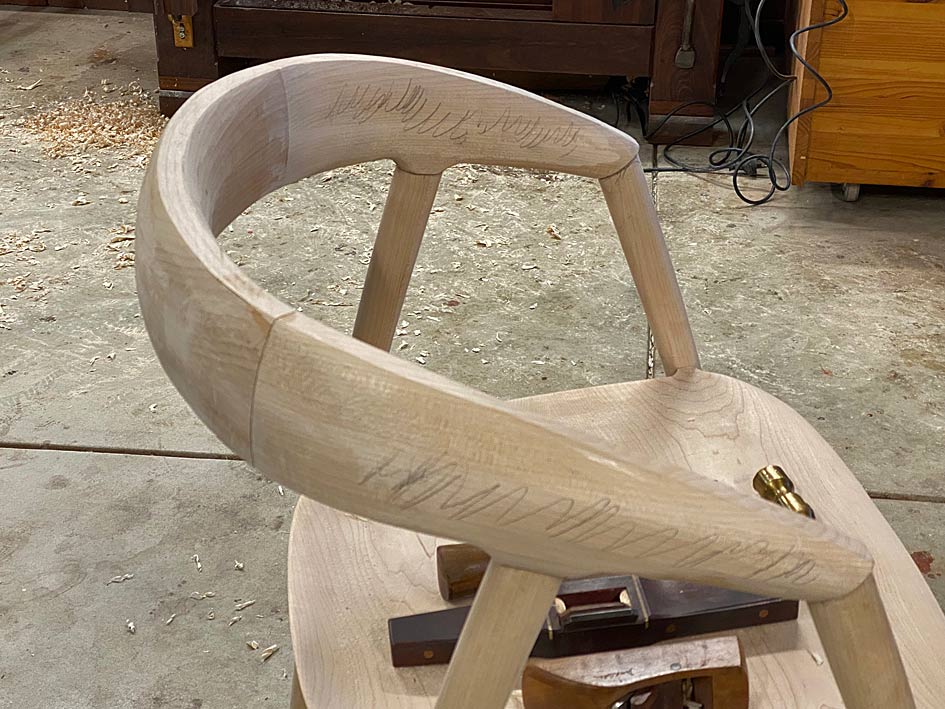

In the
following photo you can see areas marked in pencil. These are where
waste is to be removed ...
A
little is removed, and then the arms are returned to the base, where
more is marked for removal ...
The
shaping of the arms is completely by eye. There are no templates to
guide the work done. The photos are my reference: "does it look
right ... no ... take more off there ....".
I finally get
to a point where I need to check whether the curve at the rear is
fair. It needs to be symmetrical and fair, and the same for both

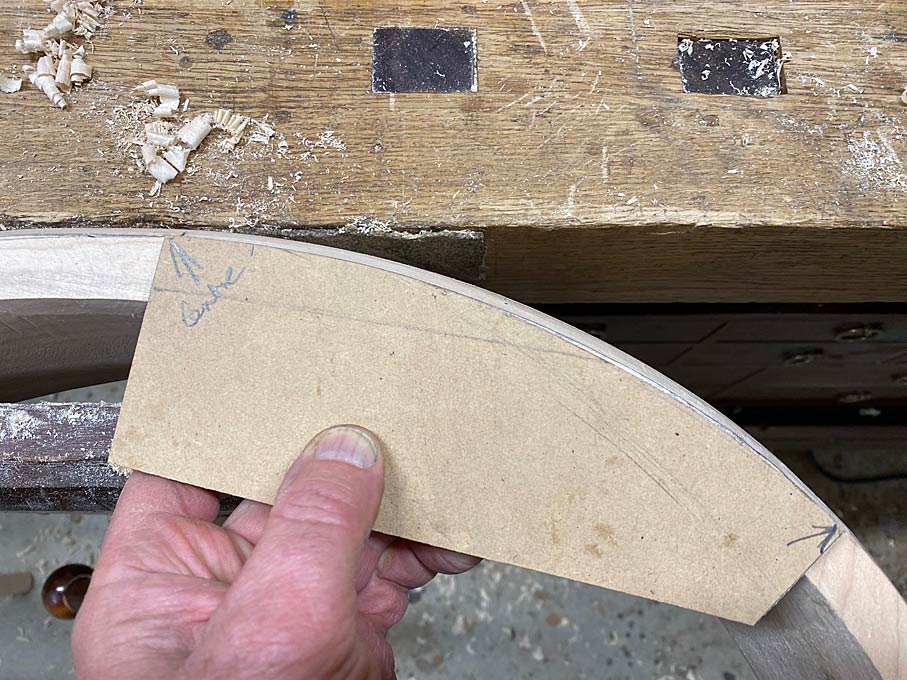

chairs. Now I trace the curve of one half of the rear centre section
...
Flipping
the template, this is taken to the other side of the back ..
It
is just a smidgeon off ...
And
the template is used on the other chair, and this proves to be
identical o chair #1 ... just a smidgeon off the left side to
spokeshave away ...
I
am amazed that the shaping has remained within my tolerances all this
time!

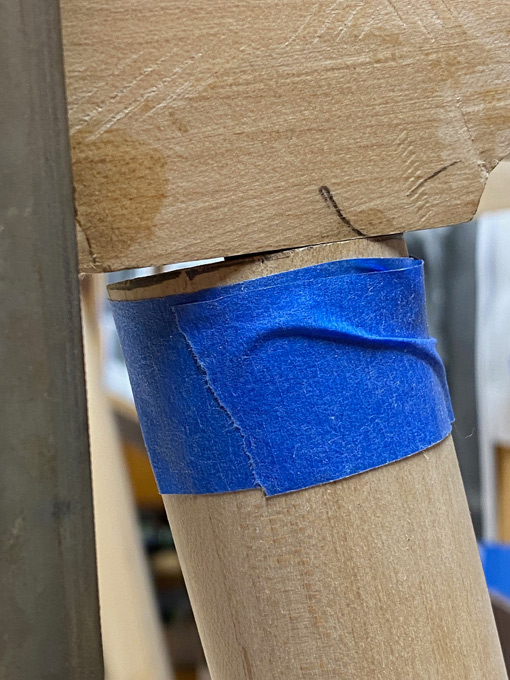

Lastly, I have been keeping an eye on the leg-arm joins.
A couple were not meeting flush, and this needed to be corrected. For
example, here you can see the gap. The blue tape marks where it keeps
to be corrected ...

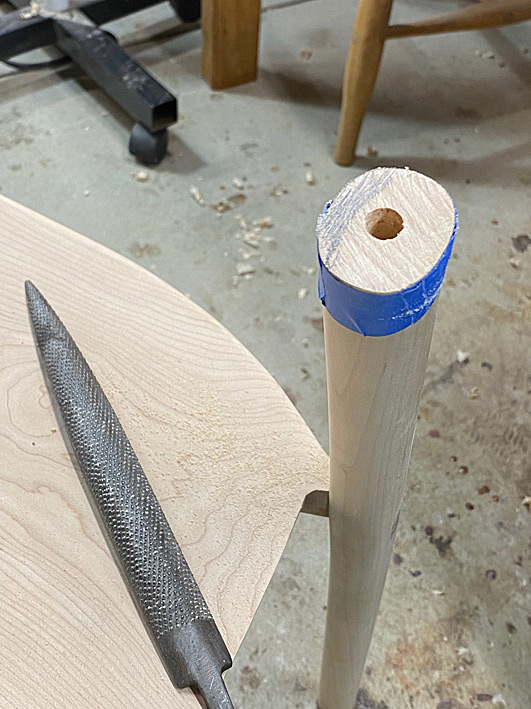

The
top is covered in pencil to help see where the rasp is working, and
the section that must not be touched ...

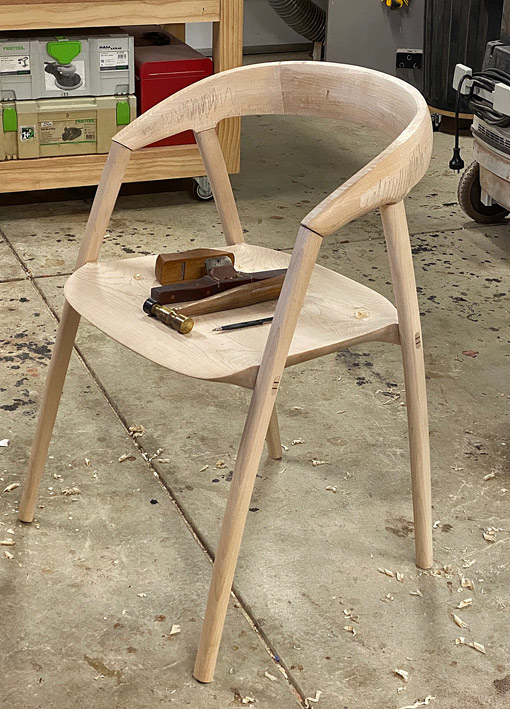

The
result ...

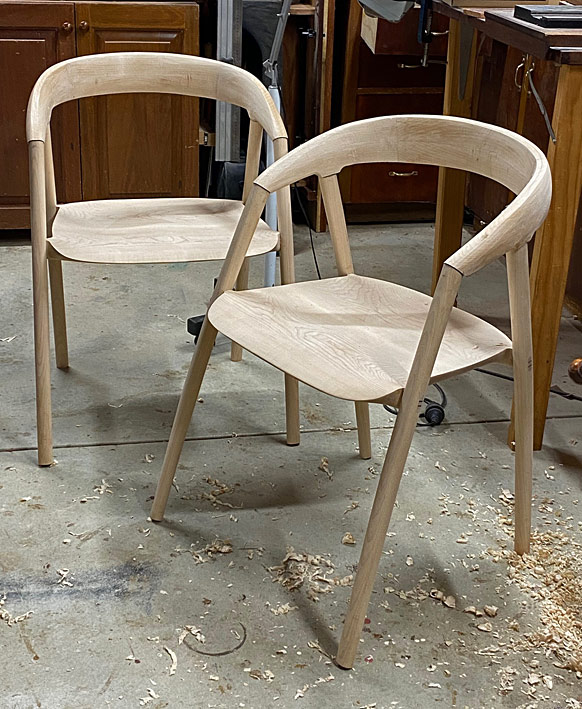

The
end of the day. A lot of work has been done over a period of 1 1/2
days in the workshop. This may go unnoticed by all but you and I
...
Lots
more to do.
Regards from Perth
Derek
May 2024
