Power removing the waste from half blind sockets
In July, I posted a power router-based method I used to remove the waste from hand cut hand-blind sockets (link). This involved orientating the boards vertically and routing into the end grain. This necessitated a rather clumsy piece of work-holding - which, as I explained at the time, was difficult to avoid as the end grain was not square to the sides, as is usual with drawer front. The bow fronted drawers created ends which were angled.
Removing the waste with a router – pin board held by a wooden clamp …
With the usual square drawer fronts, both Bill and Roger on the forum preferred to place their boards flat on the bench and rest the router on the edge.
Roger
has the following two photos ...

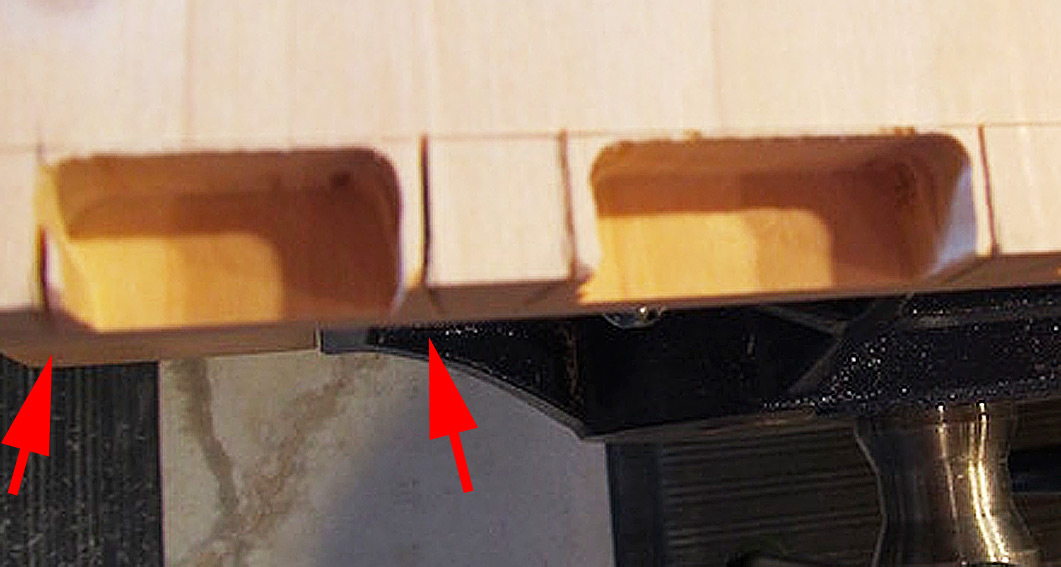

However,
this method leaves is too much waste remaining at the sides of the
socket - as this is angled and the router bit is vertical - which
means that there is more work needed to clear ...
Bill's
objection - that holding the work piece in my example vertically
looked too clumsy for easy work - continued to ring in my head. The
horizontal method certainly had the advantage of being more stable.
So, now that my then-current project, the Harlequin
Table, is
complete, between pieces I take some time to solve these problems.
Which I believe that I have, and hopefully in a way that others will
find helpful.
I
must comment that my preference is hand tool work, and generally if
the wood is willing, my go-to method is to split out waste. The
method here is not to
replace all hand work, but to make the process easier in particular
circumstances. Some of the timbers I work, especially for cases and
drawer fronts, are extremely hard, and it is not viable to chop them
out, particularly when there are several to do. It is not simply that
this is time consuming - after all, this is just my hobby - but that
it is hard on the chisels, and it is hard on the body. I use machines
to compliment hand tools. There is a time and place for
everything.
Let's take it from the beginning:

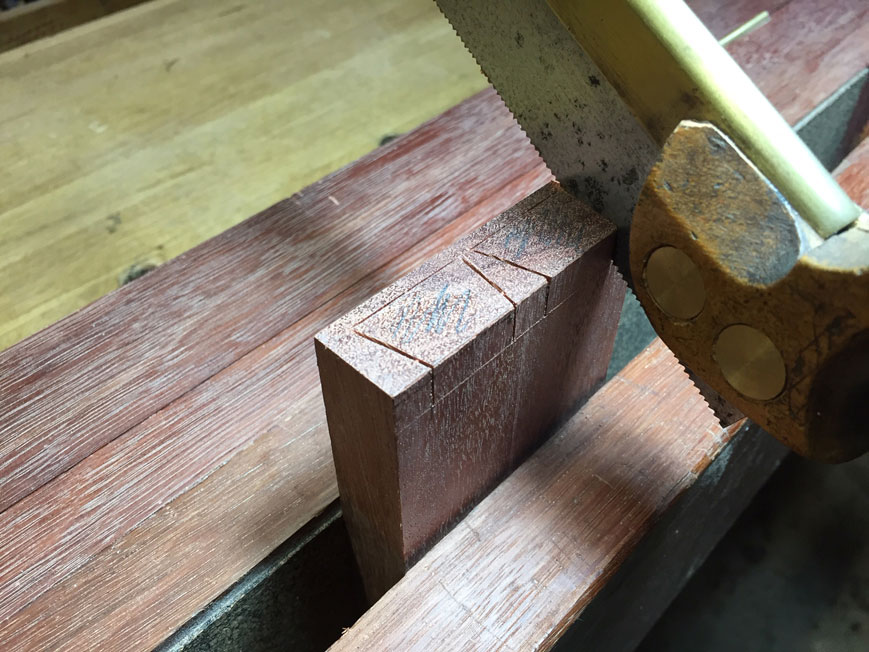

Step
1: saw the pins ...

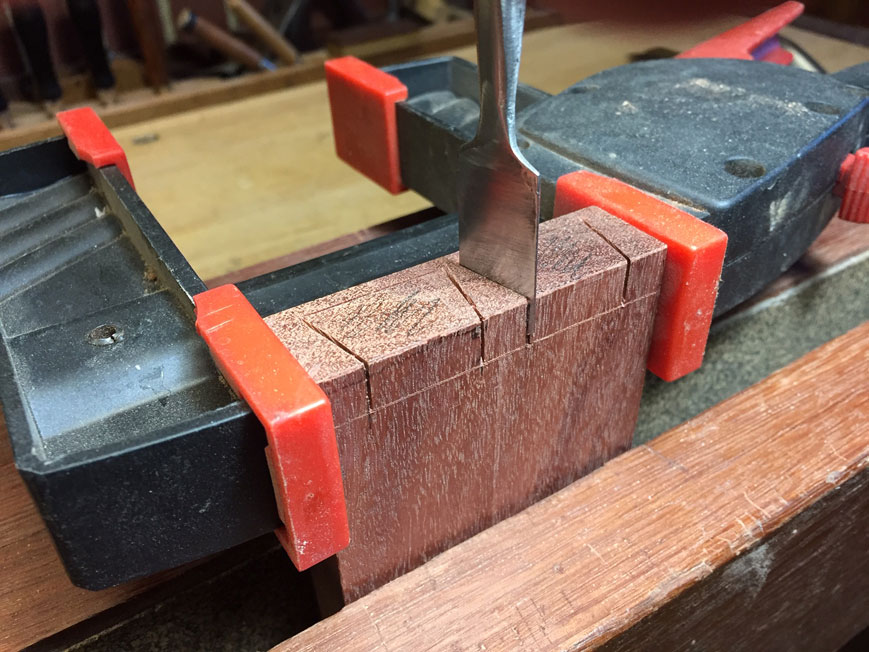

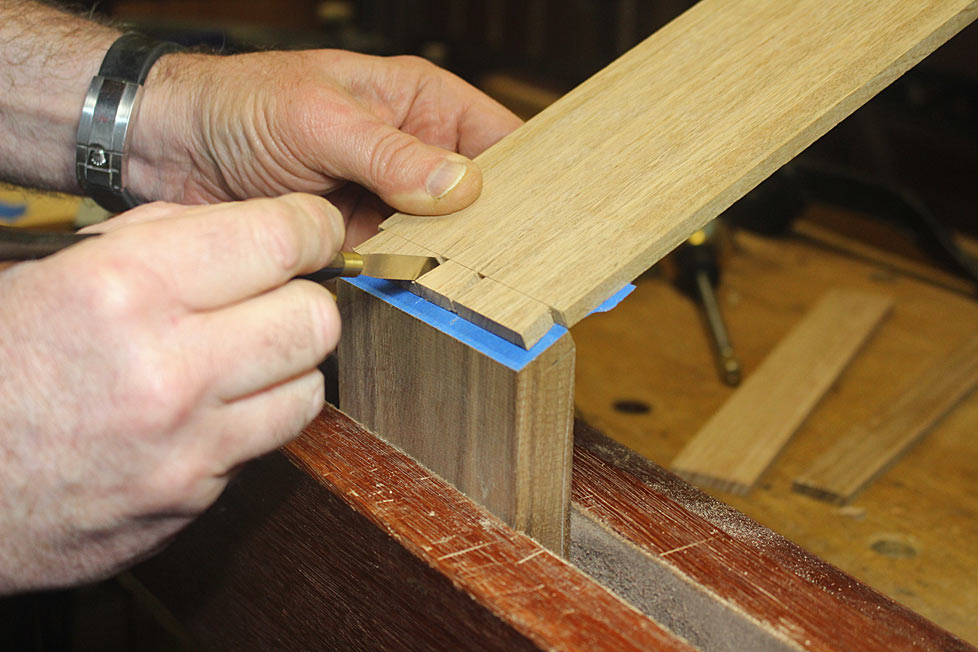

Step
2: deepen the kerfs
with (in my case) a kerfing chisel (see my website for
more info) ...
Now
we come to the new jig. I must tell you that this did my head in for
a long time. As with everything, there is a simple solution, and in
the end it could not have been simpler!
The need is (1) quick
and easy set up, (2) accurate routing leaving minimal waste, and (3)
visibility and dust control (bloody machines!).
The
Jig

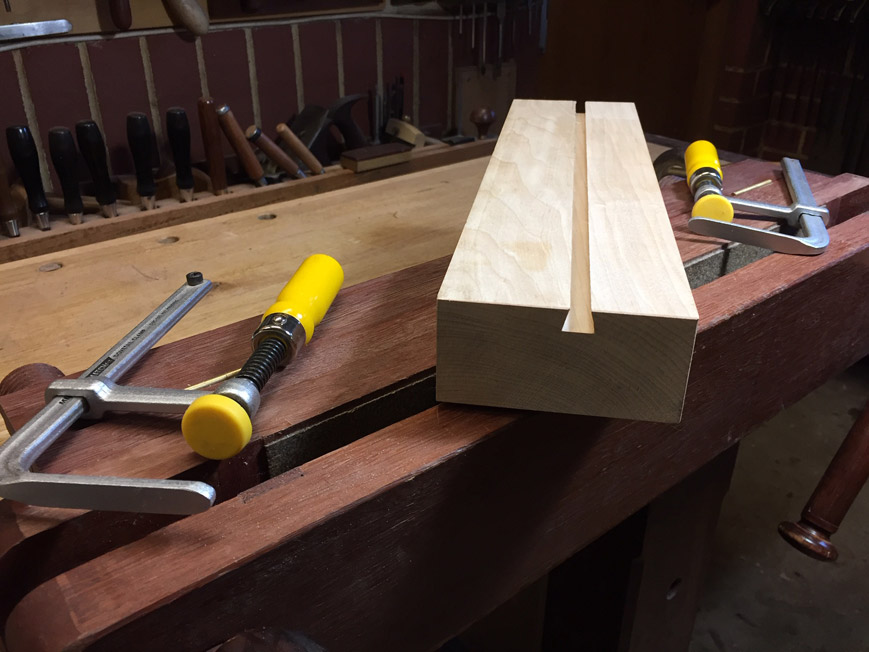

This
turned out to be nothing more than a block of wood. This one is
16"/440mm long x 4"/100mm high and 2"/50mm wide.

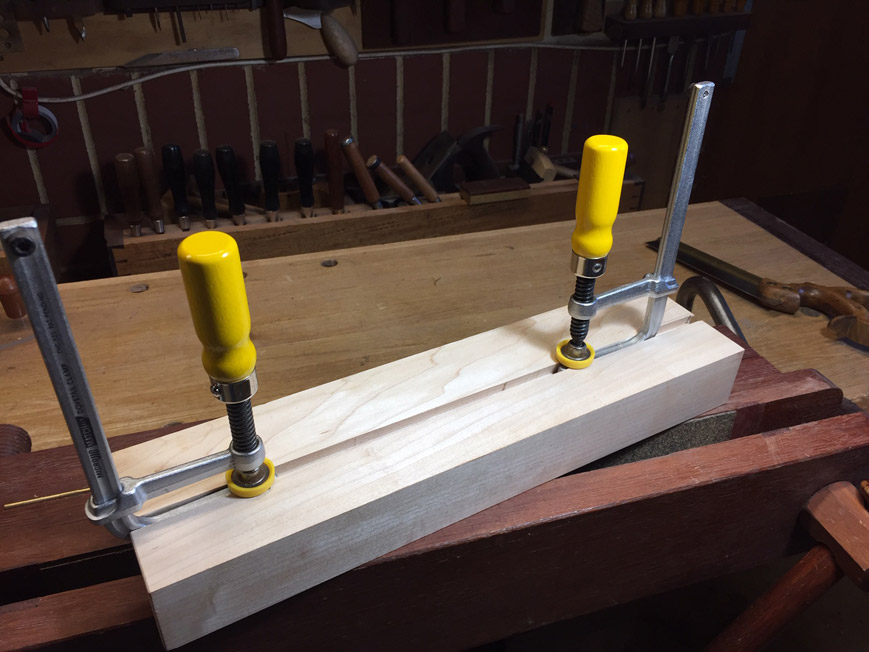

I
used MicroJig clamps, which slide along a sliding dovetail. This is
not necessary; one can just use a couple of F-clamps. However the
MicroJig clamps not only make work holding less finicky, but they
extend the length of the board one can hold with this particular jig
to 500mm. That is easily enough for most case widths.

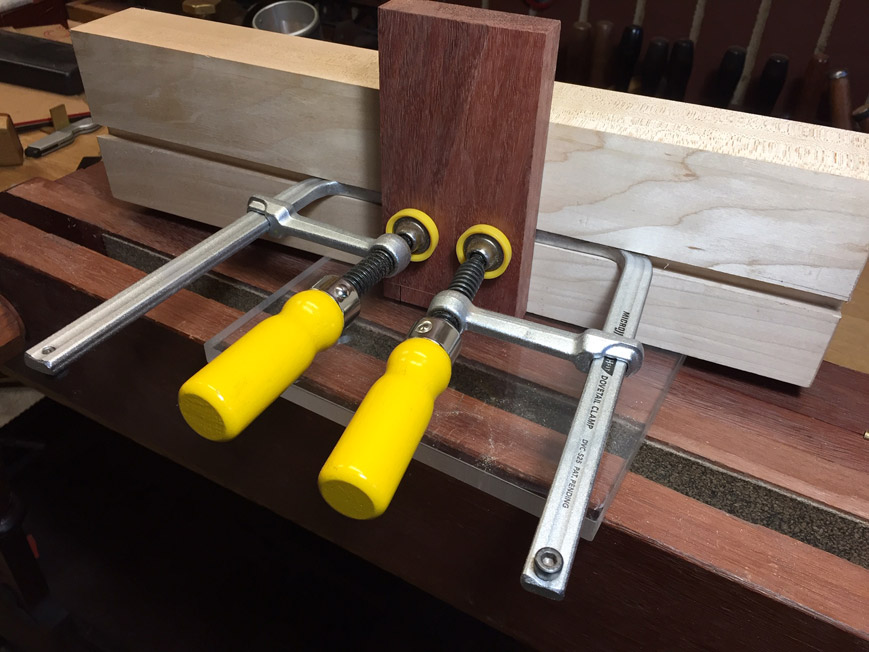

To
use, place face down on a flat surface and clamp the drawer front
close to centre ...

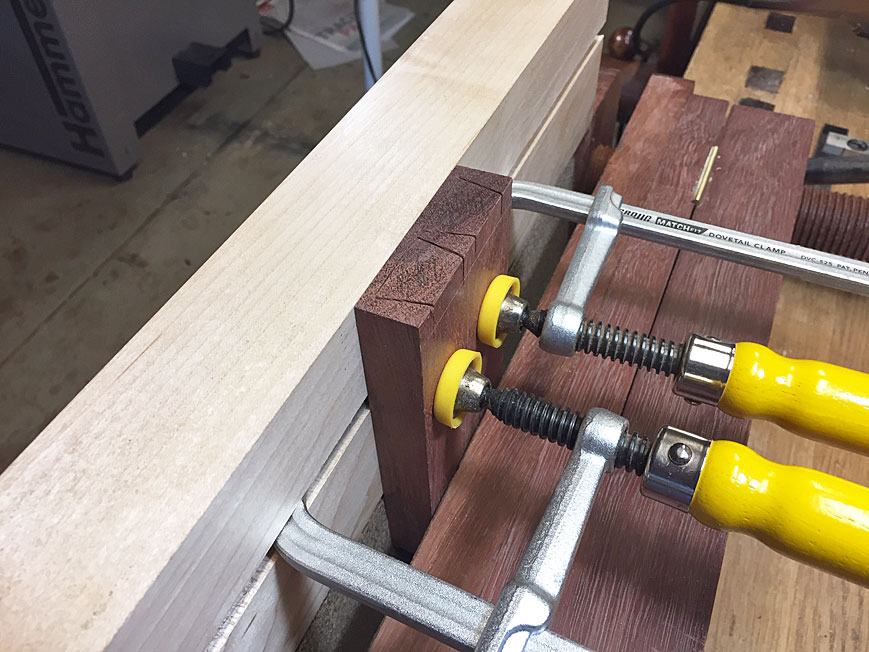

Up
end the combination, and place the end of the drawer front into your
vise. This could be a face vise or, as here, a Moxon vise. Note that
the image is taken from the rear of the vise ...

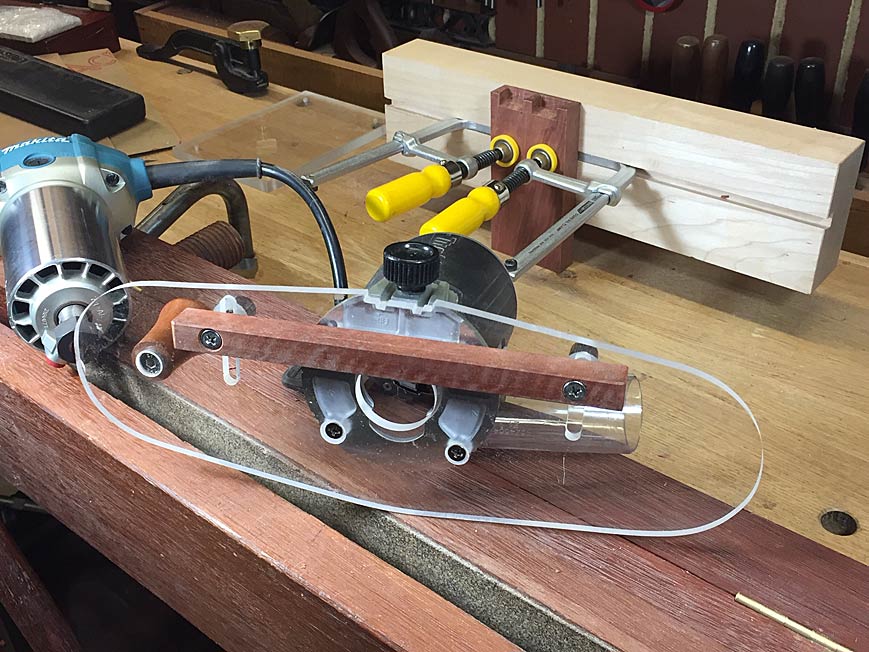

This
is what you will see when standing in front of the jig/vise ...
Let's
talk about the router.

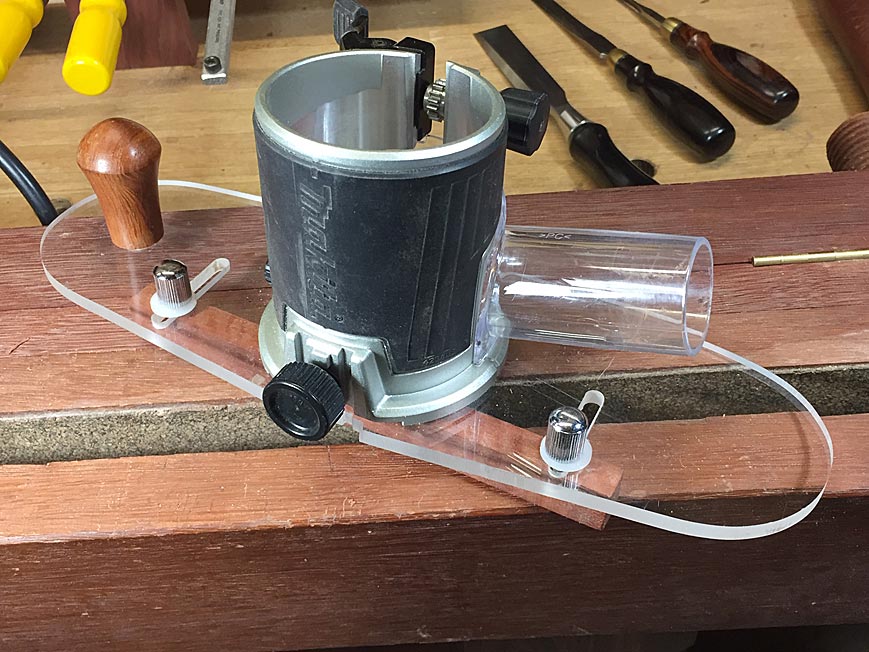

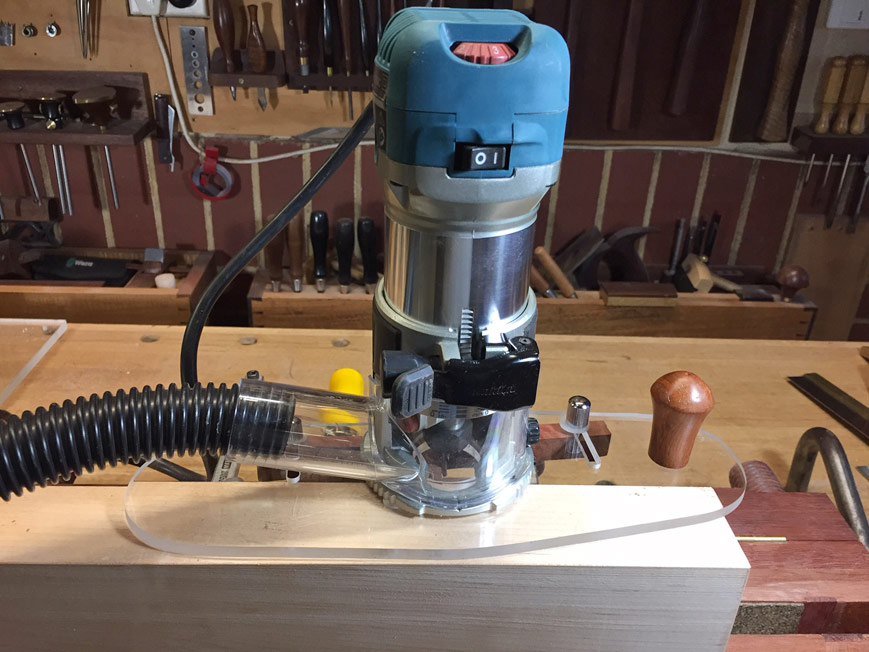

This
is a Makita RT0700C trim router. Fantastic little router: 1 hp,
variable speed, soft start. Together with a Mirka 27mm antistatic
dust hose, the dust collection is amazing! The photo shown is after
use, and there is no dust to be found (I very much doubt that a small
plunge router could remain this clean). That also means that
visibility is good, even though it does not have a built-in light.
There are other excellent trim routers around for much the same
price. This is the one I use.
Why
do I set up the work holding so that I pull the trim router towards
myself? The alternative is to push the router away from themselves.
The reason for my direction is visibility - It seems easier to
observe where the bit goes, especially as it runs along the boundary
line. I can accept that others may feel they get this with the bit
moving away from them, but this way works best for me.
Linked
to this is my insistence in using a trim router. I have a couple of
plunge routers I could use. Visibility with these is better than with
a trim router, however dust control is much poorer. To achieve the
level of dust control I want (100%), I must use this trim router, and
it must be pulled toward oneself, not pushed away, since only the
front of the router has a window.
The
base

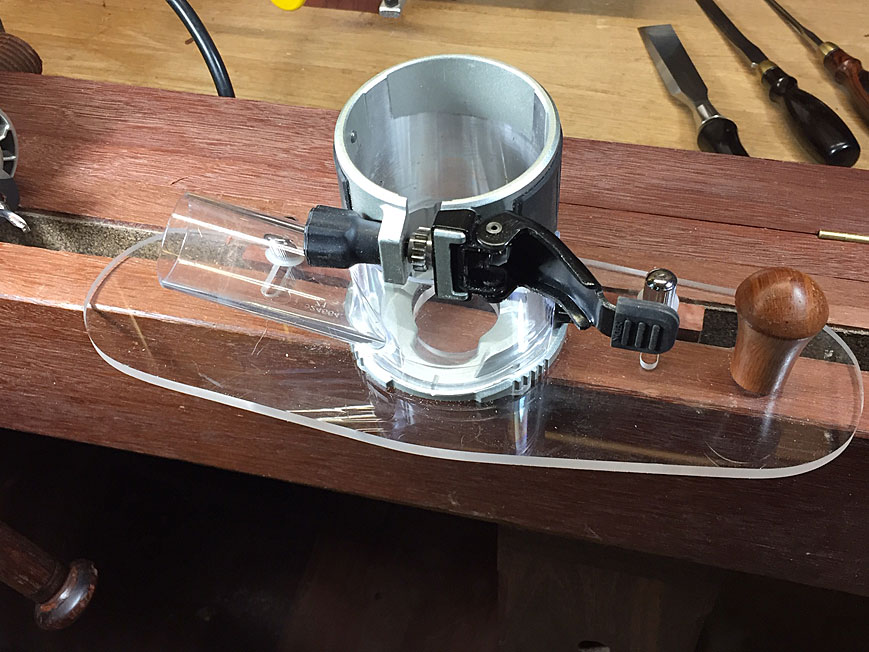

The
base is the other half of the jig. This made from 6mm perspex. This
is not the strongest, but does the job. I plan to build another out
of polycarbonite (Lexan), which is much tougher.
There
is just the single handle as the left hand will grip the dust
outlet.
Below is the rear of the base. Note the adjustable
fence/depth stop ...
This
is the underside ...
Plans
for anyone looking to make their own ...
Setting
up
Step
1:
set the depth of cut - I scribed marks on the fence for two drawer
side thickness I use. Mostly I use 6mm (or 1/4"). The other is
10mm, which is used here. I shall make another, deeper fence, so that
I can add a few other thicknesses, such as 19mm for case
sides.
Step
2:
set the cut to the boundary line - this is done as close as possible.
In the end I want to leave about 1mm to clear with a chisel (this is
such an important line that I am not willing to take a risk here). If
you move the bit side-to-side, the scratch pattern will show where it
is cutting ...
The
result

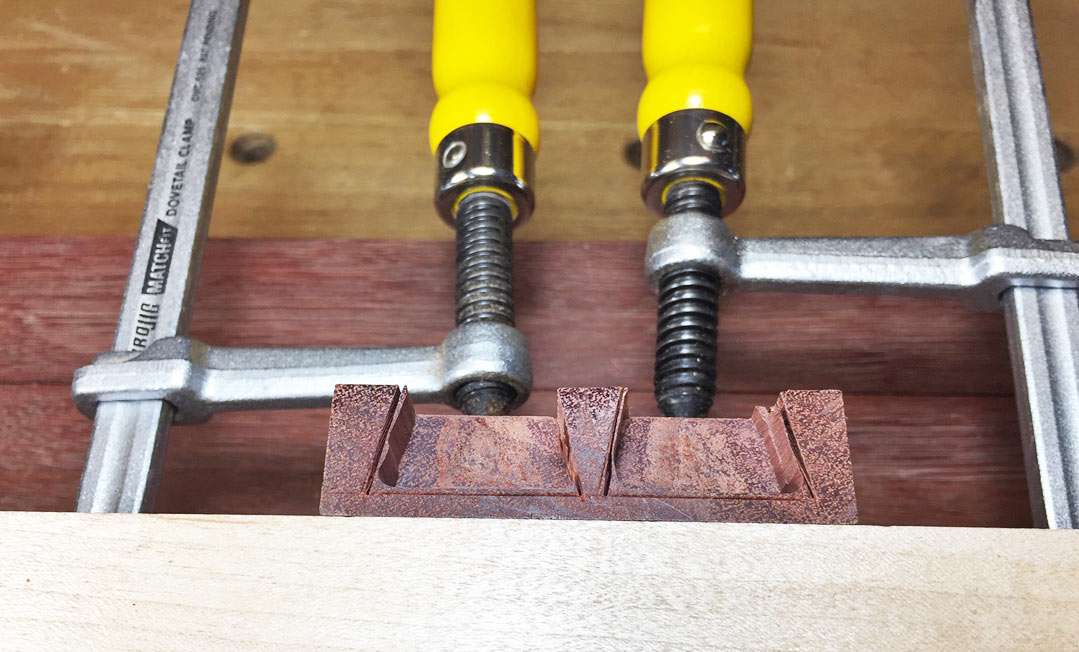

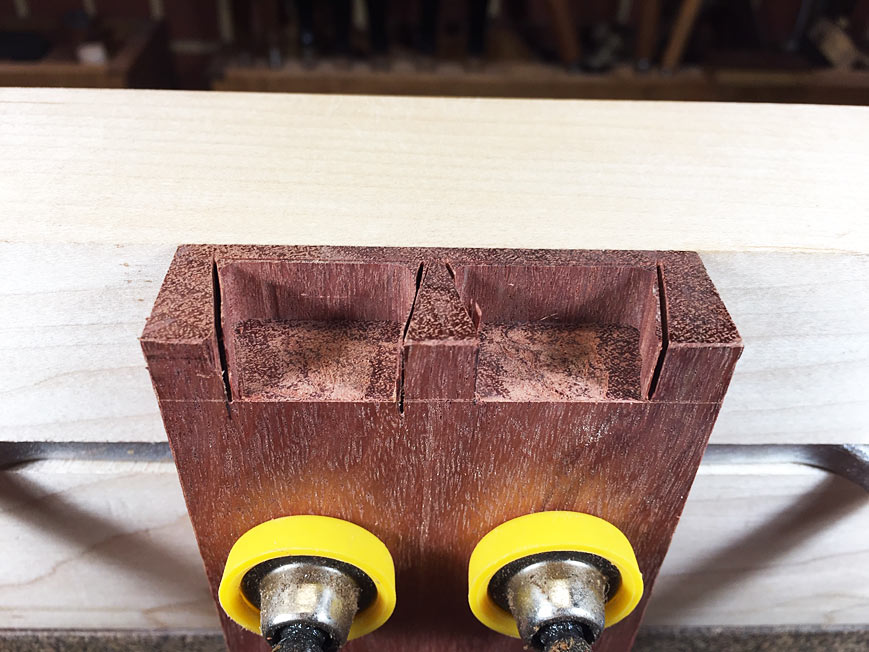

The
router bit is 5/32" carbide. It is very controllable, and this
makes it possible to freehand close to the side kerfs. The
fence/depth stop prevents over-cutting the boundary line. In 15
seconds, this is the result ...

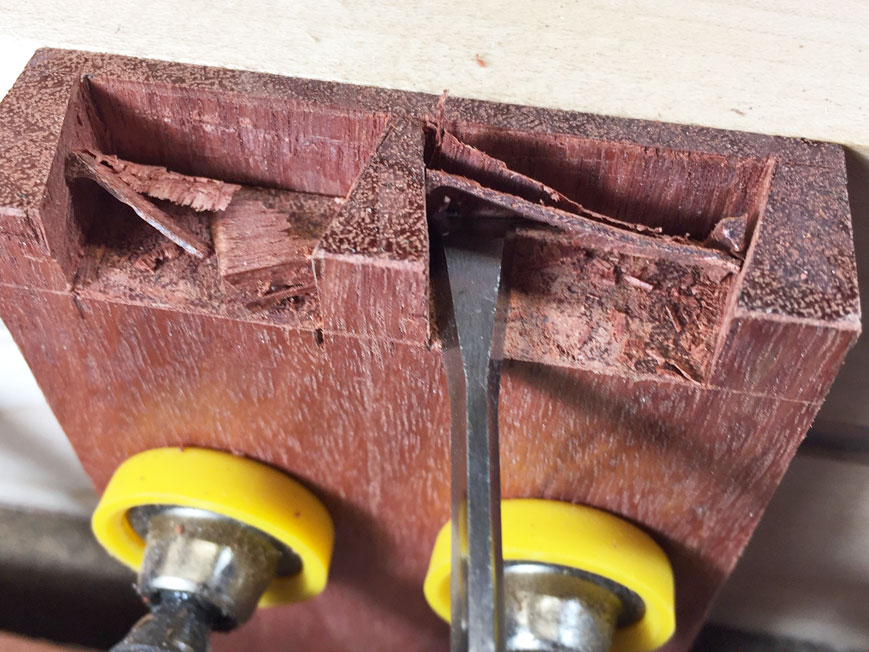

Turn
the board around to chisel out the waste ..
Order
of waste removal
First
lever away the sides. The waste here is paper thin and breaks away
...
Secondly,
place a wide chisel in the scribed boundary line, and chop straight
down ...
Finally,
use a fishtail chisel into the corners to remove this ...
A
note: removing the waste this cleanly and easily was facilitated by
using the kerfing chisel to ensure that there was a release cut at
the sides of the socket.
Regards
from Perth
Derek
August 2019
